    • Beschrijving:

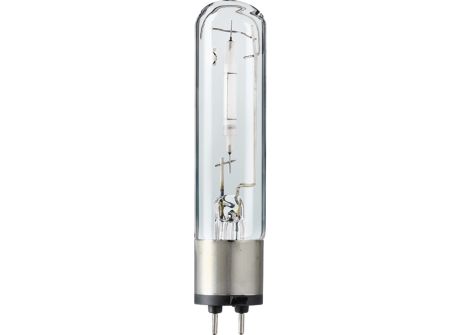

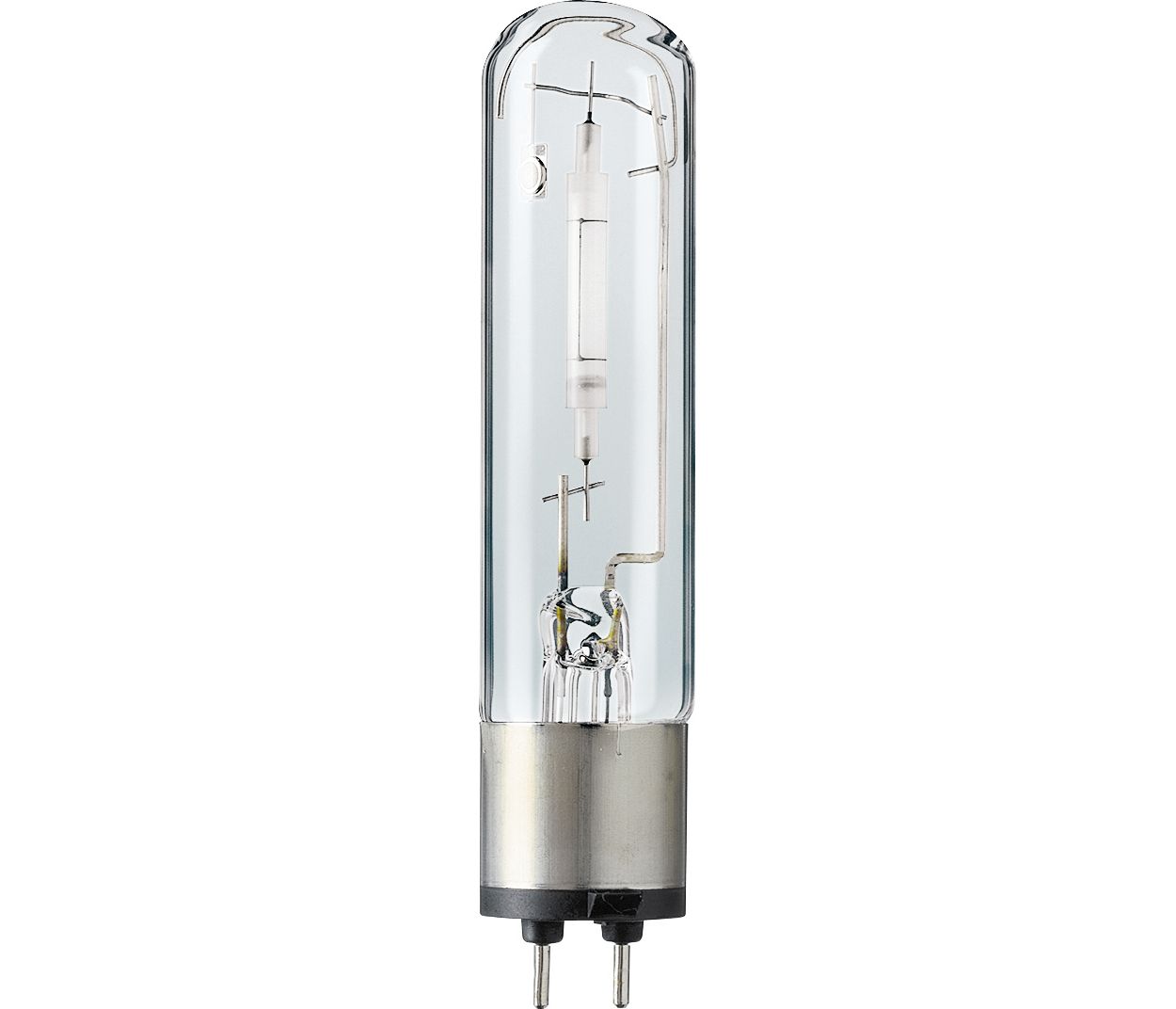

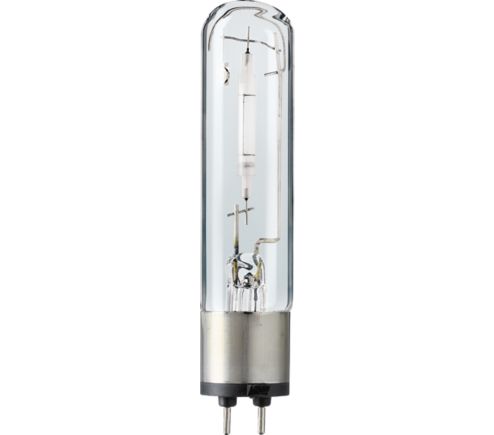

      MASTER SDW-T 100W/825 PG12-1 1SL/12
      Raadpleeg voor meer informatie het Energielabel
      MASTER SDW-T 100W/825 PG12-1 1SL/12
      MASTER SDW-T

      MASTER SDW-T 100W/825 PG12-1 1SL/12

    Specificaties Show all

    Bedrijfs- en elektrische gegevens
    Spanning (nom.)
    97 V
    Energieverbruik
    97,0 W
    Spanning (nom.)
    97 V
    Productgegevens
    Numerator - Dozen per buitendoos
    12
    Productnaam voor bestelling
    MASTER SDW-T 100W/825 PG12-1 1SL/12
    Full EOC
    871150073404415
    Bestelcode
    73404415
    Numerator - Aantal per pak
    1
    Lokale code
    SDWT100W
    Materiaalnummer (12NC)
    928154109227
    Volledige productnaam
    MASTER SDW-T 100W/825 PG12-1 1SL/12
    EAN/UPC - Case
    8711500831163
    Goedkeuring en toepassing
    Kwikinhoud (Hg) (nom.)
    11,4 mg
    Energie-efficiëntielabel
    G
    EPREL-registratienummer
    473397
    Energieverbruik kWh/1.000 uur
    97 kWh
    Kwikinhoud (Hg) (max.)
    11,4 mg
    Regelsystemen en dimmers
    Dimbaar
    Nee
    Algemene informatie
    Meetreferentie van lichtstroom
    Sphere
    Gebruiksstand
    UNIVERSEEL  [Elke of universeel (U)]
    Lampvoet
    PG12-1  [PG12-1]
    Mechanische eigenschappen en behuizing
    Lampmateriaal
    Hard glas
    Lampafwerking
    Helder
    Lampvorm
    T31  [T 31 mm]
    Eisen aan armatuurontwerp
    Gecorreleerde kleurtemperatuur (nom)
    2500 K
    Kleurweergave-index (CRI)
    83
    Kleurkwaliteit, coördinaat Y (nominaal)
    0,415
    Kleurkwaliteit, coördinaat X (nominaal)
    0,478
    Kleuraanduiding
    Gouden wit
    Lichtstroom
    5.100 lm
    Kleurcode
    825  [CCT of 2500K]
    Lichtrendement (nominaal)
    52,58 lm/W
    Installatieschema´s
    Dimension Drawing (with table) - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Dimension Drawing (with table) - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Cap/Base
    Cap/Base
    Operating position
    Operating position
    Prestatiediagrammen
    Lamp Performance During Run-up - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Lamp Performance During Run-up - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Lumen Maintenance Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Lumen Maintenance Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Service Lifetime
    Service Lifetime
    Life Expectancy Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Life Expectancy Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Fotometrische gegevens
    Spectral Power Distribution Colour - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Spectral Power Distribution Colour - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Light Distribution Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
    Light Distribution Diagram - MASTER SDW-T 100W/825 PG12-1 1SL/12
